Vacuum Control Box¶
XO-VAC+ is supplied on a caster wheel mounted rackmount unit. Within the unit are two 4U aluminium rackmount boxes for the Vacuum and Thermal control systems.
Front¶

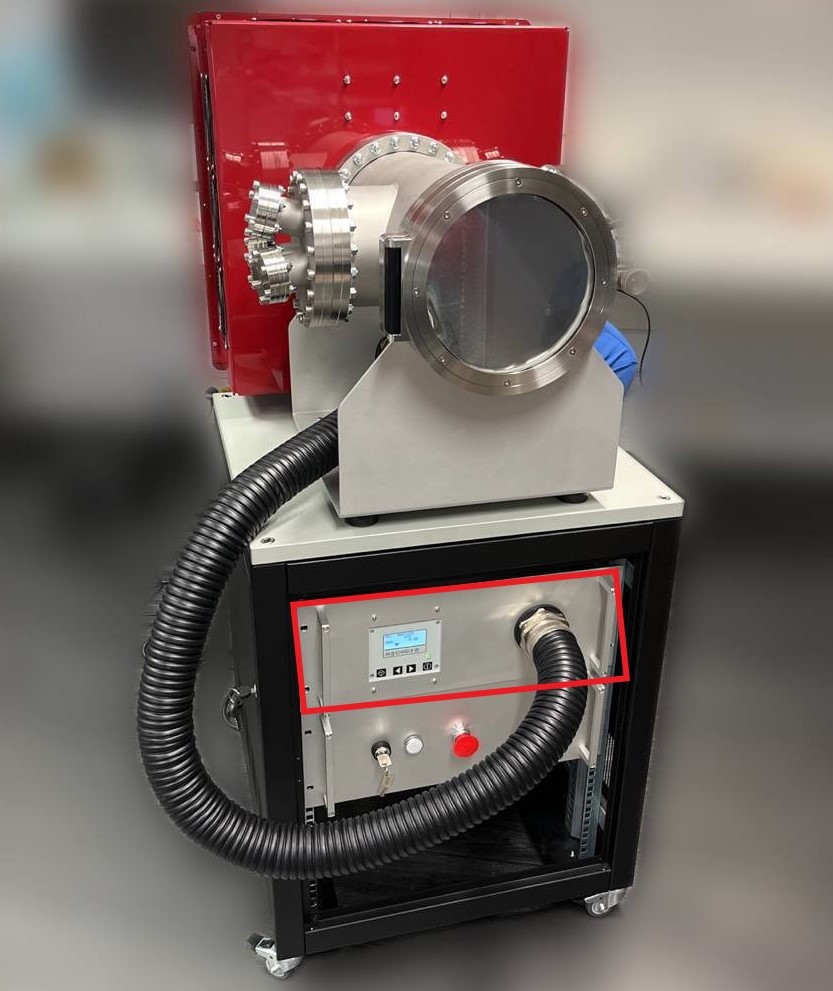

The front of the Vacuum Control system is highlighted in the photo below.
The interfaces at the front are (from left to right):
- the Vacuum Control Panel
- the Ombilical (connects the Vacuum Control box to the Back box)
Back¶

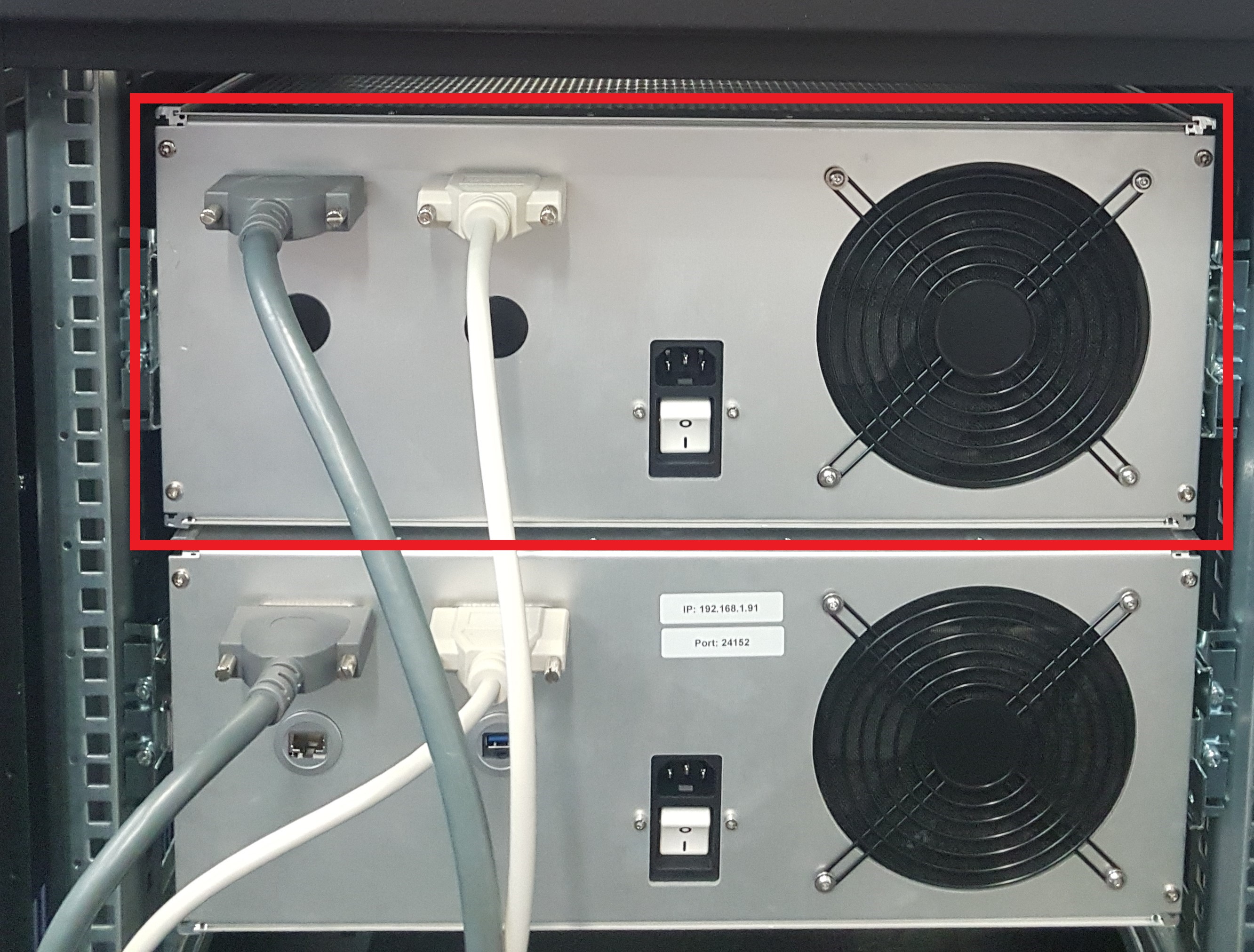

The back of the vacuum control system is highlighted in the photo below.
The interfaces at the back are (from left to right):
- D-Sub 25 Female connector (Power)
- D-Sub 25 Male connector (Signal)
- IEC 60320-1 C14 power entry connector with a switch
Danger - Fire & Electric Shock Hazards
Do not use other D-Sub 25 cables than the ones provided. Using different specs of cables can create fire hazards and/or loss of performances.
Danger - Fire & Electric Shock Hazards
Always attach the D-Sub 25 cables with the connector mounting screws. A misinserted cable can create fire hazards and/or damage XO-VAC+.
Danger - Electric Shock Hazard
Do not hot plug (insert or remove) the cables while XO-VAC+ is powered on. There is an electric shock risk for the user and the XO-VAC+ can get damaged.
Warning
The DB25 Male to Male Cable and the DB25 Female to Female Cable can expose you to chemicals including phthalates, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov
