Hardware

XO-VAC+ physically consists of a vacuum chamber which allows thermal vacuum (TVAC) testing of components. The product is built around a cylindrical test chamber where the user can load test subjects into a payload tray for testing. The thermal and vacuum systems are physically and electrically isolated from one another. The vacuum system is operated using the control panel on the front of XO-VAC+, and thermal cycling 'runs' are set up and run using the user software.

XO-VAC+ chamber pump housing

XO-VAC+ chamber (front) and pump housing (behind)

Rackmount base

Typically this is supplied mounted on a rackmount unit that contains the power supply and control units. An example is shown below.

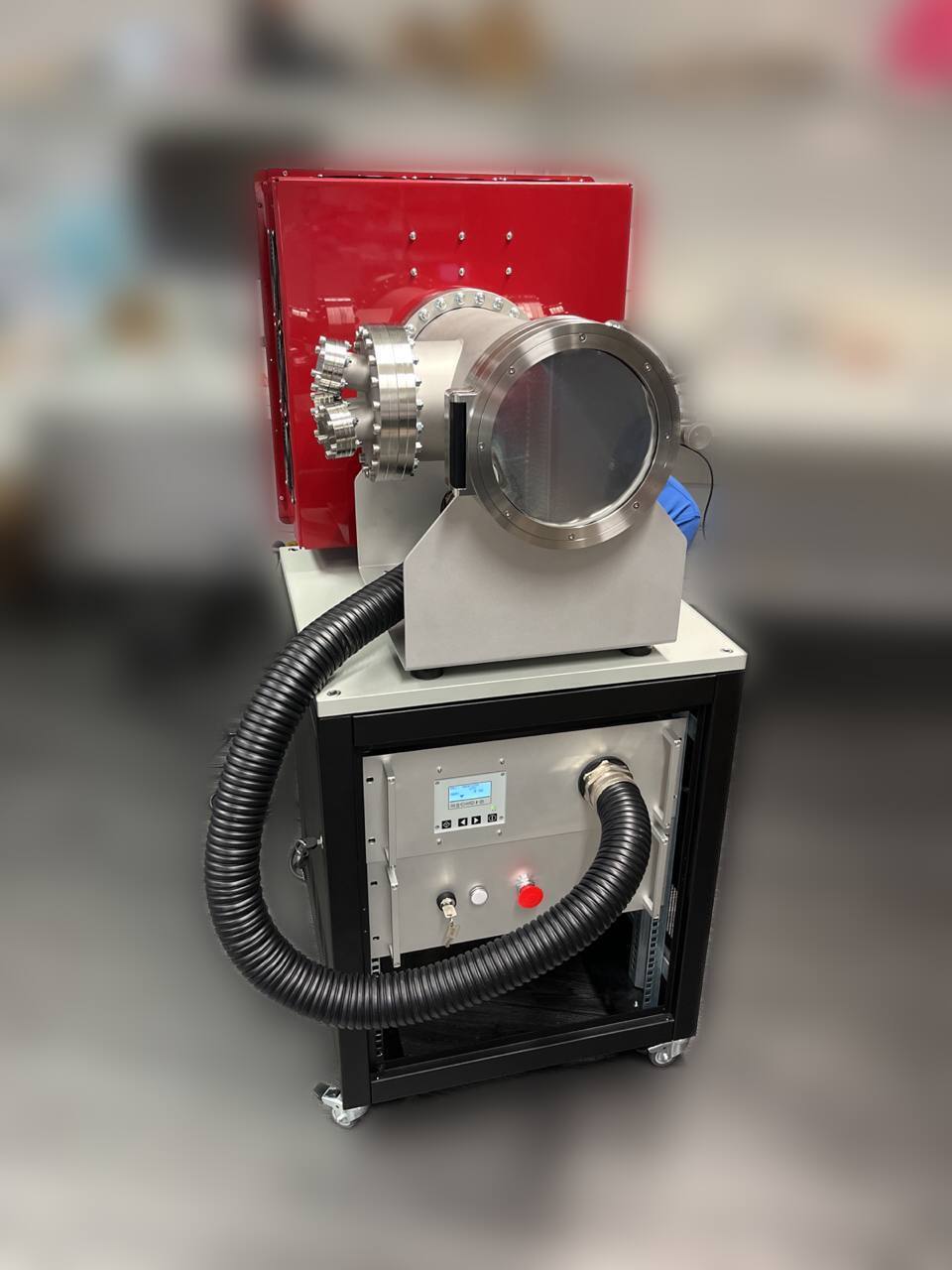

Example of XO-VAC+ mounted on a rackmount unit containing the power and control units

Example of XO-VAC+ mounted on a rackmount unit containing the power and control units.

For more information on the individual components and their connections, head to the hardware section.
